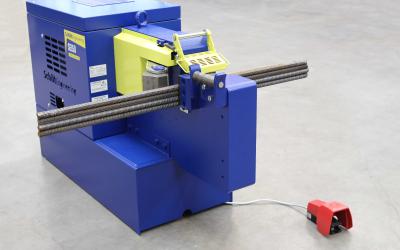

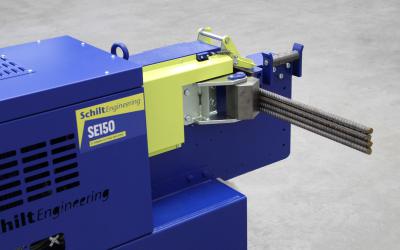

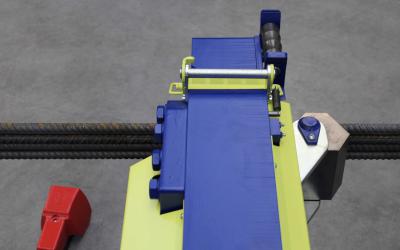

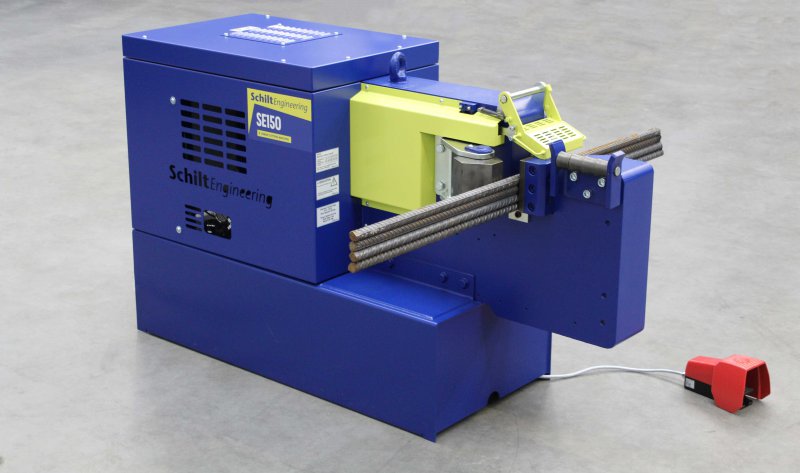

Horizontal cutting machine for bars up to Ø50mm at 850N/mm²
Blade width 150 mm
Hydraulic cutting up to 14 strokes per minute
Operated with safety foot switch
Shielded cutting area

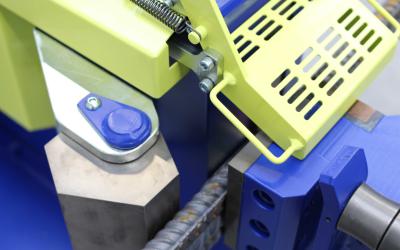

Equipped with a turnable counterholder
Low-noise level hydraulic pump
Also available in a vertical version
| Bar diameter | Ø6 | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 | Ø50 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max. number of bars per cut | 18 | 15 | 13 | 11 | 9 | 8 | 6 | 4 | 3 | 2 | 1 | 1 |
