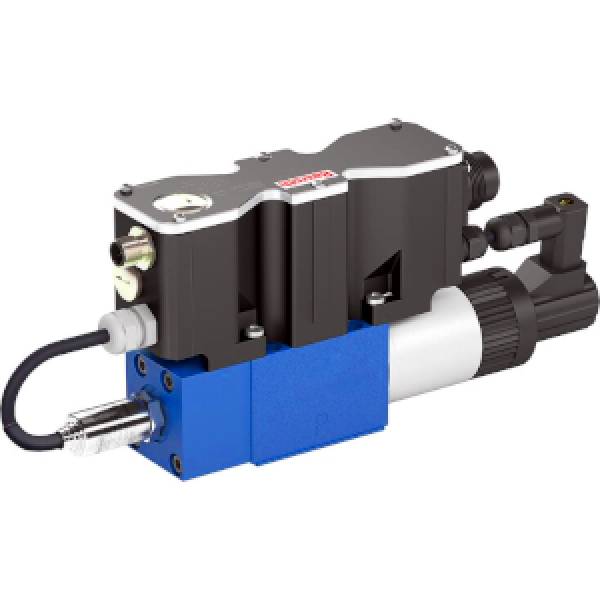

3/3 proportional servo valve, direct operated, Integrated Axis Controller (IAC-P), pQ functions
Description
| STW0195 | STW0196 | ||||
| Size | 6 | 10 | |||
| Operating pressure | p max | Bar | 250 | 250 | |
| Flow | q V max | l/min | 105 | 235 | |
| Nominal flow | q V nom | l/min | 10/20 | 60/65 | |
| Max hysteresis | % | ≤ 0,1 | ≤ 0,1 | ||
| Range of inversion | % | ≤ 0,05 | ≤ 0,05 | ||
| Response sensitivity | % | ≤ 0,05 | ≤ 0,05 | ||
| Supply voltage | U | V | 24 | 24 | |
| Code Rexroth | Description |
| R901093442 | STW 0195-2X/2V5-24PA6 |
| R901006499 | STW 0195-2X/2V5-24CF6 |
| R900767353 | STW 0195-2X/1V5-24CF6 |
| Code Rexroth | Description |
| R901141046 | STW 0196-1X/1V5-24PA6 |
| R901118994 | STW 0196-1X/1V8-24CA6 |
| R900705778 | STW 0196-1X/1V5-24CF6 |
